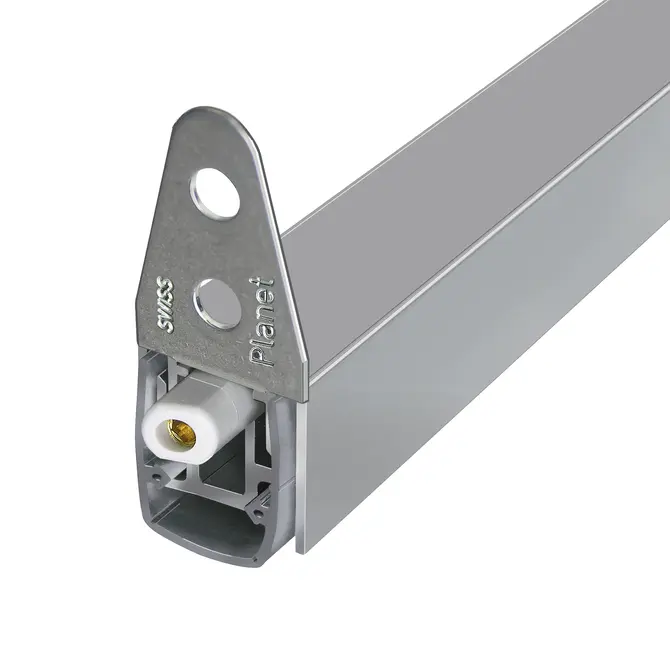

Planet MF
19,8 x 20 mm | ⇓16 mm | 50 dB
Features / versions (depending on options)
Floor surfaces
Possible door types (depending on options)
.png){kind=icon}
Overview of Advantages
- Drop-down seal for metal, wood and PVC doors
- Drop height up to 16 mm
- Sound absorption level up to 50 dB with optimal sealing
- Unilateral and silent actuation
- No scraping / trailing on the floor, thanks to parallel drop
- Automatic compensation of sloped floors
- For double-leaf doors with flush bolt or shoot bolt
- High-quality silicone lip, lateral protrusion adjustable
- Easy drop height adjustment
- Can be shortened to the next smaller stock length
- 7-year warranty
Incl. accessories
Planet assembly set MF for metal doors with 2 mounting brackets and self-tapping screws
Tender specification
Automatic door drop-down seal Planet MF RD | 50 dB, for sound and smoke-shielding protection doors, hinge-side triggering with automatic compensation for sloping floors, parallel lowering, seal height up to 16 mm. Flush or deeper with lip guard for grooving. Silicone lip, side attachment. Aluminium profile 19.8 x 20 mm.
Automatic door drop-down seal Planet MF FH+RD | 50 dB, for sound, smoke-shielding and fire-retardant doors, hinge-side triggering with automatic compensation for sloping floors, parallel lowering, seal height up to 16 mm. Flush or deeper with lip protection for grooving. Self-extinguishing silicone lip, side attachment. Aluminium profile 19.8 x 20 mm.
| Groove size | 20,3 mm wide and 20,5 to 25 mm deep |
| Seal profile | high-quality silicone or high-quality self-extinguishing silicone |
| Sound absorption value | up to 50 dB at ground air 7 mm |
| Fastening | with stainless steel mounting bracket and self-tapping screws on the side |
| Can be shortened | max. 125 mm (335 mm only 115 mm) |
| Release | on one side, hinge side |
| Drop height adjustment | on release pin with 3 mm Allen key |
| Max. drop height | 16 mm |
| Profile size | 19.8 x 20 mm |
| Profile material | Aluminium |
| Order number | Version | Length | can be shortened to | Order placement information |
|---|---|---|---|---|
| 50040 | smoke-shielding | <400 mm | no function | |
| 50034 | smoke-shielding | 335 mm | >220 mm | |
| 50046 | smoke-shielding | 460 mm | >335 mm | |
| 50059 | smoke-shielding | 585 mm | >460 mm | |
| 50071 | smoke-shielding | 710 mm | >585 mm | |
| 50084 | smoke-shielding | 835 mm | >710 mm | |
| 50096 | smoke-shielding | 960 mm | >835 mm | |
| 50109 | smoke-shielding | 1085 mm | >960 mm | |
| 50121 | smoke-shielding | 1210 mm | >1085 mm | |
| 50134 | smoke-shielding | 1335 mm | >1210 mm | |
| 50146 | smoke-shielding | 1460 mm | >1335 mm | |
| 50159 | smoke-shielding | 1585 mm | >1460 mm | |
| 50600 | smoke-shielding | <6000 mm | per running meter | |
| 51040 | fire-retardant+smoke-shielding | <400 mm | no function | |
| 51034 | fire-retardant+smoke-shielding | 335 mm | >220 mm | |
| 51046 | fire-retardant+smoke-shielding | 460 mm | >335 mm | |
| 51059 | fire-retardant+smoke-shielding | 585 mm | >460 mm | |
| 51071 | fire-retardant+smoke-shielding | 710 mm | >585 mm | |
| 51084 | fire-retardant+smoke-shielding | 835 mm | >710 mm | |
| 51096 | fire-retardant+smoke-shielding | 960 mm | >835 mm | |
| 51109 | fire-retardant+smoke-shielding | 1085 mm | >960 mm | |
| 51121 | fire-retardant+smoke-shielding | 1210 mm | >1085 mm | |
| 51134 | fire-retardant+smoke-shielding | 1335 mm | >1210 mm | |
| 51146 | fire-retardant+smoke-shielding | 1460 mm | >1335 mm | |
| 51159 | fire-retardant+smoke-shielding | 1585 mm | >1460 mm | |
| 51600 | fire-retardant+smoke-shielding | <6000 mm | per running meter |
| | Order number | Product |
|---|---|---|
 | 900200 | Cut to fixed size Cut to fixed dimensions, all Planet types except KG, MinE |
 | 900601 | Planet hole 5x13 mm, symmetrical (specify backset) Planet drill hole 5x13 mm, symmetrical, for profile widths 13 and 20 mm |
| 900190L | Planet hole 5x13 mm, asymmetrical DIN L (specify backset) Planet hole 5 x 13 mm, asymmetrical, for flush bolt / shoot bolt (standard, optimum acoustics), for profile width 13 and 20 mm, DIN L |
| 900190R | Planet hole 5x13 mm, asymmetrical DIN R (specify backset) Planet hole 5 x 13 mm, asymmetrical, for flush bolt / shoot bolt (standard, optimum acoustics), for profile width 13 and 20 mm, DIN R |
 | 900280 | Planet hole Ø10 mm for 20 mm profiles (specify backset) Planet hole Ø10 mm, for profile width 20 mm, suitable for driving bar rod Ø10 mm |
 | 900390 | Planet TR125 double shortening, 5 x 13 mm hole (specify backset) Planet TR125 double shortening, prepared with 5 x 13 mm hole (please specify backset) |
| 902668 | Planet TR125 double shortening, 10 mm hole (specify backset) Planet TR125 double shortening, prepared with 10 mm hole (please specify backset) |
 | 900916 | Vertical drop-down seal installation Drop-down seal installation vertical, for all Planet types |
 | 900793 | Corrosion resistant mechanism (13 and 20 mm line) Corrosion-resistant mechanism for 13 or 20 mm profiles, after clarification |
 | 900915 | Drop-down seal, top installation Drop-down seal installation at the top, for all Planet types |
 | 900917 | Drop-down seal installation horizontal / top / sliding door mechanism Drop-down seal installation horizontal / top, only for sliding doors |
 | 900918 | Folding walls G-G design Version for folding partitions G-G, for almost all Planet types |
 | 900908 | Version for sliding door Version for sliding door, DIN L/R closing |
 | 900440 | Silicon protrusion Silicone projection, hinge side: x mm; lock side: y mm, for all Planet types |
 | 900909 | Inverse actuation, trigger plate 50 mm Inverse release (trigger on tension), tension plate 20 x 8 x 50 mm, for Planet HS, FT, RH, RF, RO, RS, PU, GH, TW, US |
 | 902084 | Inverse actuation, trigger plate 70 mm Inverse release (trigger on tension), tension plate 20 x 8 x 70 mm, for Planet HS, FT, RH, RF, RO, RS, PU, GH, TW, US |
 | 902085 | Inverse actuation, trigger plate 80 mm Inverse release (trigger on tension), tension plate 20 x 8 x 80 mm, for Planet HS, FT, RH, RF, RO, RS, PU, GH, TW, US |
 | 900895L | Bevel lip for uneven floors, DIN L (right handed), 20 mm profiles Bevel lip for uneven floors, DIN L (right handed), 20 mm profiles |
| 900895R | Bevel lip for uneven floors, DIN R (left handed), 20 mm profiles Bevel lip for uneven floors, for 20 mm profiles, DIN R (left handed) |
 | 900920 | Pivot door design (13 and 20 mm line) Version for pivot door, for 13 mm and 20 mm profiles: Planet HS, HS-plus, FT, FT-plus, RH, RF, MF, MF-plus, RO, RO-plus, RS and PU; on request |
