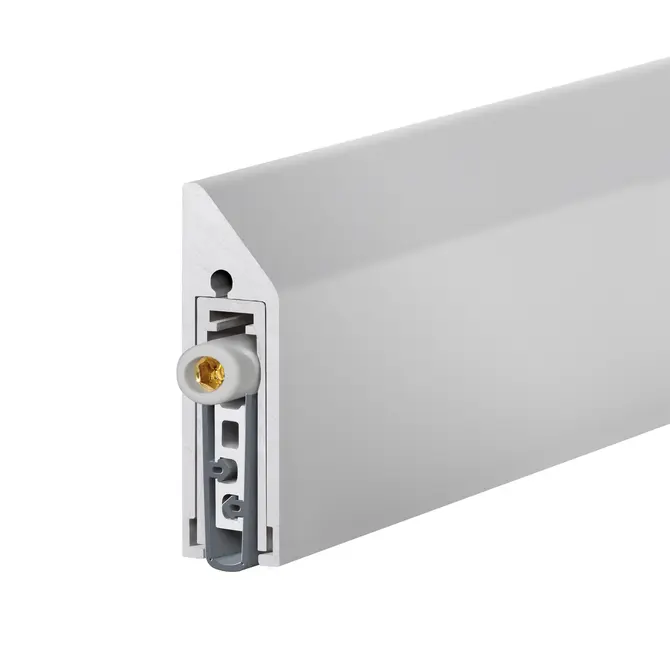

Planet KG-SM-Set narrow
11,5 x 38 mm | ⇓16 mm | 48 dB
Features / versions (depending on options)
Floor surfaces
Possible door types (depending on options)
.png){kind=icon}
Overview of Advantages
- Drop-down seal for glass, wood, metal and PVC doors
- Drop height up to 16 mm
- Sound absorption level up to 48 dB with optimal sealing
- Easy installation with adhesive tape set
- For new and existing doors
- Elegant architectural design solution
- Can be used for left and right doors
- Unilateral and silent actuation
- No scraping / trailing on the floor, thanks to parallel drop
- Automatic compensation of sloped floors
- High-quality silicone lip, lateral protrusion adjustable
- Easy drop height adjustment
- Can be shortened to the next smaller stock length
- 7-year warranty
Incl. accessories
Complete set consisting of drop-down seal, protection profile with prepared double adhesive tape, assembly adhesive, cover plates, stopping plates, fixing screw, optical film, Allen key
Tender specification
Automatic door drop-down seal Planet KG-S narrow RD | 48 dB, single-sided release with parallel lowering and automatic compensation for sloping floors, protection profile in silver anodised EV1, matt stainless steel or matt black C35 matt anodised, for gluing to the side. Seal height up to 16 mm. Silicone lip. protection profile and profile made of aluminium 11.5 x 38 mm, incl. lock-side cover plate for hinged doors.
| Seal profile | high-quality silicone |
| Sound absorption value | up to 48 dB at ground air 7 mm |
| Frame protector plate | stainless steel, for knocking in, 20 x 20 mm |
| Fastening | for gluing |
| Can be shortened | max. 125 mm |
| Release | on one side, hinge side |
| Drop height adjustment | on release pin with 3 mm Allen key |
| Max. drop height | 16 mm |
| Profile size | 11.5 x 38 mm |
| Profile material | Aluminium |
| Surface | silver anodised EV1, matt anodised stainless steel (INOX) or black C35 matt anodised |
