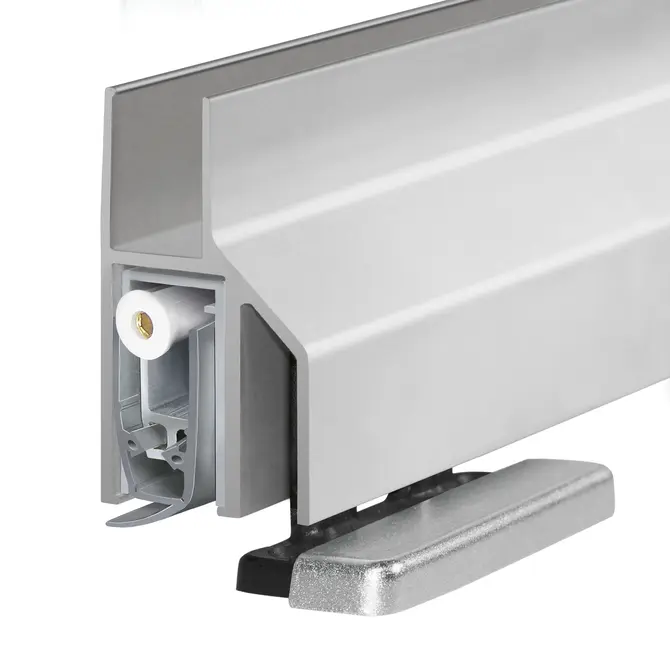

Planet KG-SL10
25 x 46 mm | ⇓18 mm | 44 dB
Features / versions (depending on options)
Floor surfaces
Possible door types (depending on options)
Overview of Advantages
- Drop-down seal for glass sliding doors
- Drop height from 5 – 18 mm
- Acoustic insulation value up to 44 dB with optimum sealing
- For all-glass sliding doors with 10 mm glass thickness
- Planet KG-SL10 for attaching and gluing
- Planet drop-down seal is glued into protection profile SL10
- Unilateral and silent actuation
- No scraping / trailing on the floor, thanks to parallel drop
- High-quality silicone lip, lateral protrusion adjustable
- Easy drop height adjustment
- Automatic compensation for sloping / uneven floors
- Can be shortened to the next smaller stock length
- Plan in door locking mechanism (hook latch or roller retainer)
- 7-year warranty
Incl. accessories
Planet floor guide and cover cap for Planet KG-SL10, Planet stopping plate, type 1 (stainless steel) and cover plate
Tender specification
Automatic door drop-down seal Planet KG-SL10 RD | 44 dB, single-sided release with parallel lowering and automatic compensation for sloping floors, protection profile in silver anodised EV1 or matt anodised stainless steel, for attachment and gluing, seal height of 5 – 18 mm. Silicone lip. protection profile and profile made of aluminium 25 x 46 mm, incl. cover plate.
Automatic door drop-down seal Planet KG-SL10 FH+RD | 44 dB, suitable for fire and smoke-shielding-retardant doors, acoustic insulation level SK 1-3, single-sided release with parallel lowering and automatic compensation for sloping floors, protection profile in silver anodised EV1 or matt anodised stainless steel, for attaching and gluing, seal height of 5 – 18 mm. Silicone lip. protection profile and profile made of aluminium 25 x 46 mm, incl. cover plate.
| Seal profile | high-quality silicone or high-quality self-extinguishing silicone |
| Sound absorption value | up to 44 dB at ground air 7 mm |
| Frame protector plate | stainless steel, for knocking in, 20 x 20 mm |
| Fastening | for gluing |
| Can be shortened | max. 125 mm |
| Release | one-sided |
| Drop height adjustment | on release pin with 3 mm Allen key |
| Max. drop height | 5 – 18 mm |
| Profile size | 25 x 46 mm |
| Profile material | Aluminium |
| Special features | Air flow 30 m³/h at ventilation length 1050 mm and pressure difference of 3.9 Pa |
| Surface | silver anodised EV1 or matt anodised stainless steel (INOX) |
| Order number | Version | DIN-direction | Surface | Length | can be shortened to | Order placement information |
|---|---|---|---|---|---|---|
| 37046-SL10L | smoke-shielding | DIN L (left closing) | silver anodised EV1 | 459 mm | >335 mm | |
| 37059-SL10L | smoke-shielding | DIN L (left closing) | silver anodised EV1 | 584 mm | >460 mm | |
| 37071-SL10L | smoke-shielding | DIN L (left closing) | silver anodised EV1 | 709 mm | >585 mm | |
| 37084-SL10L | smoke-shielding | DIN L (left closing) | silver anodised EV1 | 834 mm | >710 mm | |
| 37096-SL10L | smoke-shielding | DIN L (left closing) | silver anodised EV1 | 959 mm | >835 mm | |
| 37109-SL10L | smoke-shielding | DIN L (left closing) | silver anodised EV1 | 1084 mm | >960 mm | |
| 37121-SL10L | smoke-shielding | DIN L (left closing) | silver anodised EV1 | 1209 mm | >1085 mm | |
| 37134-SL10L | smoke-shielding | DIN L (left closing) | silver anodised EV1 | 1334 mm | >1210 mm | |
| 37146-SL10L | smoke-shielding | DIN L (left closing) | silver anodised EV1 | 1459 mm | >1335 mm | |
| 37160-SL10L | smoke-shielding | DIN L (left closing) | silver anodised EV1 | <6000 mm | per running meter | |
| 37046-SL10R | smoke-shielding | DIN R (right closing) | silver anodised EV1 | 459 mm | >335 mm | |
| 37059-SL10R | smoke-shielding | DIN R (right closing) | silver anodised EV1 | 584 mm | >460 mm | |
| 37071-SL10R | smoke-shielding | DIN R (right closing) | silver anodised EV1 | 709 mm | >585 mm | |
| 37084-SL10R | smoke-shielding | DIN R (right closing) | silver anodised EV1 | 834 mm | >710 mm | |
| 37096-SL10R | smoke-shielding | DIN R (right closing) | silver anodised EV1 | 959 mm | >835 mm | |
| 37109-SL10R | smoke-shielding | DIN R (right closing) | silver anodised EV1 | 1084 mm | >960 mm | |
| 37121-SL10R | smoke-shielding | DIN R (right closing) | silver anodised EV1 | 1209 mm | >1085 mm | |
| 37134-SL10R | smoke-shielding | DIN R (right closing) | silver anodised EV1 | 1334 mm | >1210 mm | |
| 37146-SL10R | smoke-shielding | DIN R (right closing) | silver anodised EV1 | 1459 mm | >1335 mm | |
| 37160-SL10R | smoke-shielding | DIN R (right closing) | silver anodised EV1 | <6000 mm | per running meter | |
| 37046-SL10XL | smoke-shielding | DIN L (left closing) | Matt anodised stainless steel (INOX) | 459 mm | >335 mm | |
| 37059-SL10XL | smoke-shielding | DIN L (left closing) | Matt anodised stainless steel (INOX) | 584 mm | >460 mm | |
| 37071-SL10XL | smoke-shielding | DIN L (left closing) | Matt anodised stainless steel (INOX) | 709 mm | >585 mm | |
| 37084-SL10XL | smoke-shielding | DIN L (left closing) | Matt anodised stainless steel (INOX) | 834 mm | >710 mm | |
| 37096-SL10XL | smoke-shielding | DIN L (left closing) | Matt anodised stainless steel (INOX) | 959 mm | >835 mm | |
| 37109-SL10XL | smoke-shielding | DIN L (left closing) | Matt anodised stainless steel (INOX) | 1084 mm | >960 mm | |
| 37121-SL10XL | smoke-shielding | DIN L (left closing) | Matt anodised stainless steel (INOX) | 1209 mm | >1085 mm | |
| 37134-SL10XL | smoke-shielding | DIN L (left closing) | Matt anodised stainless steel (INOX) | 1334 mm | >1210 mm | |
| 37146-SL10XL | smoke-shielding | DIN L (left closing) | Matt anodised stainless steel (INOX) | 1459 mm | >1335 mm | |
| 37160-SL10XL | smoke-shielding | DIN L (left closing) | Matt anodised stainless steel (INOX) | <6000 mm | per running meter | |
| 37046-SL10XR | smoke-shielding | DIN R (right closing) | Matt anodised stainless steel (INOX) | 459 mm | >335 mm | |
| 37059-SL10XR | smoke-shielding | DIN R (right closing) | Matt anodised stainless steel (INOX) | 584 mm | >460 mm | |
| 37071-SL10XR | smoke-shielding | DIN R (right closing) | Matt anodised stainless steel (INOX) | 709 mm | >585 mm | |
| 37084-SL10XR | smoke-shielding | DIN R (right closing) | Matt anodised stainless steel (INOX) | 834 mm | >710 mm | |
| 37096-SL10XR | smoke-shielding | DIN R (right closing) | Matt anodised stainless steel (INOX) | 959 mm | >835 mm | |
| 37109-SL10XR | smoke-shielding | DIN R (right closing) | Matt anodised stainless steel (INOX) | 1084 mm | >960 mm | |
| 37121-SL10XR | smoke-shielding | DIN R (right closing) | Matt anodised stainless steel (INOX) | 1209 mm | >1085 mm | |
| 37134-SL10XR | smoke-shielding | DIN R (right closing) | Matt anodised stainless steel (INOX) | 1334 mm | >1210 mm | |
| 37146-SL10XR | smoke-shielding | DIN R (right closing) | Matt anodised stainless steel (INOX) | 1459 mm | >1335 mm | |
| 37160-SL10XR | smoke-shielding | DIN R (right closing) | Matt anodised stainless steel (INOX) | <6000 mm | per running meter | |
| 39046-SL10L | fire-retardant+smoke-shielding | DIN L (left closing) | silver anodised EV1 | 459 mm | >335 mm | |
| 39059-SL10L | fire-retardant+smoke-shielding | DIN L (left closing) | silver anodised EV1 | 584 mm | >460 mm | |
| 39071-SL10L | fire-retardant+smoke-shielding | DIN L (left closing) | silver anodised EV1 | 710 mm | >585 mm | |
| 39084-SL10L | fire-retardant+smoke-shielding | DIN L (left closing) | silver anodised EV1 | 834 mm | >710 mm | |
| 39096-SL10L | fire-retardant+smoke-shielding | DIN L (left closing) | silver anodised EV1 | 959 mm | >835 mm | |
| 39109-SL10L | fire-retardant+smoke-shielding | DIN L (left closing) | silver anodised EV1 | 1084 mm | >960 mm | |
| 39121-SL10L | fire-retardant+smoke-shielding | DIN L (left closing) | silver anodised EV1 | 1209 mm | >1085 mm | |
| 39134-SL10L | fire-retardant+smoke-shielding | DIN L (left closing) | silver anodised EV1 | 1334 mm | >1210 mm | |
| 39146-SL10L | fire-retardant+smoke-shielding | DIN L (left closing) | silver anodised EV1 | 1459 mm | >1335 mm | |
| 39160-SL10L | fire-retardant+smoke-shielding | DIN L (left closing) | silver anodised EV1 | <6000 mm | per running meter | |
| 39046-SL10R | fire-retardant+smoke-shielding | DIN R (left handed) | silver anodised EV1 | 459 mm | >335 mm | |
| 39059-SL10R | fire-retardant+smoke-shielding | DIN R (left handed) | silver anodised EV1 | 584 mm | >460 mm | |
| 39071-SL10R | fire-retardant+smoke-shielding | DIN R (left handed) | silver anodised EV1 | 710 mm | >585 mm | |
| 39084-SL10R | fire-retardant+smoke-shielding | DIN R (left handed) | silver anodised EV1 | 834 mm | >710 mm | |
| 39096-SL10R | fire-retardant+smoke-shielding | DIN R (left handed) | silver anodised EV1 | 959 mm | >835 mm | |
| 39109-SL10R | fire-retardant+smoke-shielding | DIN R (left handed) | silver anodised EV1 | 1084 mm | >960 mm | |
| 39121-SL10R | fire-retardant+smoke-shielding | DIN R (left handed) | silver anodised EV1 | 1209 mm | >1085 mm | |
| 39134-SL10R | fire-retardant+smoke-shielding | DIN R (left handed) | silver anodised EV1 | 1334 mm | >1210 mm | |
| 39146-SL10R | fire-retardant+smoke-shielding | DIN R (left handed) | silver anodised EV1 | 1459 mm | >1335 mm | |
| 39160-SL10R | fire-retardant+smoke-shielding | DIN R (left handed) | silver anodised EV1 | <6000 mm | per running meter | |
| 39046-SL10XL | fire-retardant+smoke-shielding | DIN L (left closing) | Matt anodised stainless steel (INOX) | 459 mm | >335 mm | |
| 39059-SL10XL | fire-retardant+smoke-shielding | DIN L (left closing) | Matt anodised stainless steel (INOX) | 584 mm | >460 mm | |
| 39071-SL10XL | fire-retardant+smoke-shielding | DIN L (left closing) | Matt anodised stainless steel (INOX) | 710 mm | >585 mm | |
| 39084-SL10XL | fire-retardant+smoke-shielding | DIN L (left closing) | Matt anodised stainless steel (INOX) | 834 mm | >710 mm | |
| 39096-SL10XL | fire-retardant+smoke-shielding | DIN L (left closing) | Matt anodised stainless steel (INOX) | 959 mm | >835 mm | |
| 39109-SL10XL | fire-retardant+smoke-shielding | DIN L (left closing) | Matt anodised stainless steel (INOX) | 1084 mm | >960 mm | |
| 39121-SL10XL | fire-retardant+smoke-shielding | DIN L (left closing) | Matt anodised stainless steel (INOX) | 1209 mm | >1085 mm | |
| 39134-SL10XL | fire-retardant+smoke-shielding | DIN L (left closing) | Matt anodised stainless steel (INOX) | 1334 mm | >1210 mm | |
| 39146-SL10XL | fire-retardant+smoke-shielding | DIN L (left closing) | Matt anodised stainless steel (INOX) | 1459 mm | >1335 mm | |
| 39160-SL10XL | fire-retardant+smoke-shielding | DIN L (left closing) | Matt anodised stainless steel (INOX) | <6000 mm | per running meter | |
| 39046-SL10XR | fire-retardant+smoke-shielding | DIN R (left handed) | Matt anodised stainless steel (INOX) | 459 mm | >335 mm | |
| 39059-SL10XR | fire-retardant+smoke-shielding | DIN R (left handed) | Matt anodised stainless steel (INOX) | 584 mm | >460 mm | |
| 39071-SL10XR | fire-retardant+smoke-shielding | DIN R (left handed) | Matt anodised stainless steel (INOX) | 710 mm | >585 mm | |
| 39084-SL10XR | fire-retardant+smoke-shielding | DIN R (left handed) | Matt anodised stainless steel (INOX) | 834 mm | >710 mm | |
| 39096-SL10XR | fire-retardant+smoke-shielding | DIN R (left handed) | Matt anodised stainless steel (INOX) | 959 mm | >835 mm | |
| 39109-SL10XR | fire-retardant+smoke-shielding | DIN R (left handed) | Matt anodised stainless steel (INOX) | 1084 mm | >960 mm | |
| 39121-SL10XR | fire-retardant+smoke-shielding | DIN R (left handed) | Matt anodised stainless steel (INOX) | 1209 mm | >1085 mm | |
| 39134-SL10XR | fire-retardant+smoke-shielding | DIN R (left handed) | Matt anodised stainless steel (INOX) | 1334 mm | >1210 mm | |
| 39146-SL10XR | fire-retardant+smoke-shielding | DIN R (left handed) | Matt anodised stainless steel (INOX) | 1459 mm | >1335 mm | |
| 39160-SL10XR | fire-retardant+smoke-shielding | DIN R (left handed) | Matt anodised stainless steel (INOX) | <6000 mm | per running meter |
| | Order number | Product |
|---|---|---|
 | 900225 | Cut to fixed dimensions (KG and MinE) Cut to fixed dimensions, Planet KG and Planet MinE |
 | 900440 | Silicon protrusion Silicone projection, hinge side: x mm; lock side: y mm, for all Planet types |
 | 900783 | Reinforced mechanics Reinforced mechanism for 13 mm profiles, reinforced bending springs |
 | 900923 | Profiles in special colours Profiles with special colors, anodized (EURAS) or powder coated (RAL / DB / NCS), for Planet Socle, Planet KG, Planet F threshold plates (cover plates are not available in special colors), other colors on request |
 | 900910 | Round lip design Version with round lip for Planet MinE, GH, SN, KG-SL10 |
| | Order number | Product |
|---|---|---|
 | 900217 | Floor guide for Planet KG-SL10 Floor guide for Planet KG-SL10, backlash-free, black |
 | 900454 | Cover cap for Planet KG-SL10 floor guide, EV1 Cover cap for Planet KG-SL10 floor guide, silver anodised EV1 |
 | 900252 | Cover plate set for Planet KG-D8|D10, KG-U, KG-SL10, KG-F12s |
 | 900014 | Stopping plate Type 1 (standard) Stopping plate type 1 (standard), stainless |
