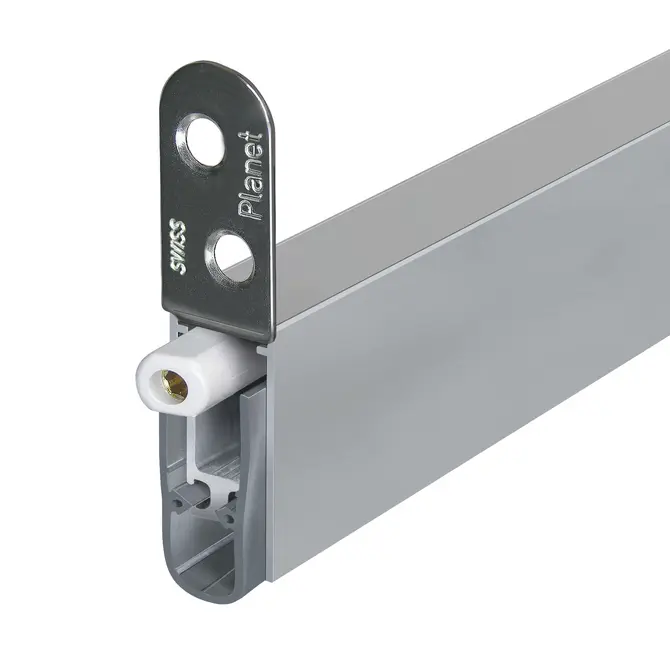

Planet ZA
15 x 30 mm | ⇓22 mm | 48 dB
Features / versions (depending on options)
Floor surfaces
Overview of Advantages
- Drop-down seal for wooden, metal and PVC doors
- Drop height up to 22 mm
- Sound absorption level up to 48 dB with optimal sealing
- Deeper recess allows for protection of the silicone lip
- Door bottom can be adjusted without seal removal
- Unilateral and silent actuation
- No scraping / trailing on the floor, thanks to parallel drop
- Automatic compensation for sloping / uneven floors
- High-quality silicone lip, lateral protrusion adjustable
- Easy drop height adjustment
- Can be shortened to the next smaller stock length
- 7-year warranty
Incl. accessories
Planet assembly set, incl. 2 mounting brackets (stainless), 4 screws and frame protector plate, type 1 (stainless steel)
Tender specification
Automatic door drop-down seal Planet ZA RD | 48 dB, for sound and smoke-shielding protection doors, hinge-side triggering with automatic compensation for sloping floors, parallel lowering, seal height up to 22 mm, flush or deeper with lip protection for grooving. Silicone lip, side attachment. Profile made of aluminium 15 x 30 mm.
Automatic door drop-down seal Planet ZA FH+RD | 48 dB, for sound, smoke-shielding and fire-retardant doors, hinge-side release with automatic compensation for sloping floors, parallel lowering, seal height up to 22 mm, flush or deeper with lip protection for grooving. Side attachment, lip made of self-extinguishing silicone. Profile made of aluminium 5 x 30 mm.
| Groove size | 15,3 mm wide and 30,5 to 40 mm deep |
| Seal profile | high-quality silicone or high-quality self-extinguishing silicone |
| Sound absorption value | up to 48 dB at ground air 7 mm |
| Frame protector plate | stainless steel, for knocking in, 20 x 20 mm |
| Fastening | with stainless steel mounting brackets and screws on the side |
| Can be shortened | max. 125 mm (335 mm only 115 mm) |
| Release | on one side, hinge side |
| Drop height adjustment | on release pin with 3 mm Allen key |
| Max. drop height | 22 mm |
| Profile size | 15 x 30 mm |
| Profile material | Aluminium |
| Order number | Version | Length | can be shortened to | Order placement information |
|---|---|---|---|---|
| 100040 | smoke-shielding | <400 mm | ||
| 100034 | smoke-shielding | 335 mm | >220 mm | |
| 100046 | smoke-shielding | 460 mm | >335 mm | |
| 100059 | smoke-shielding | 585 mm | >460 mm | |
| 100071 | smoke-shielding | 710 mm | >585 mm | |
| 100084 | smoke-shielding | 835 mm | >710 mm | |
| 100096 | smoke-shielding | 960 mm | >835 mm | |
| 100109 | smoke-shielding | 1085 mm | >960 mm | |
| 100121 | smoke-shielding | 1210 mm | >1085 mm | |
| 100134 | smoke-shielding | 1335 mm | >1210 mm | |
| 100146 | smoke-shielding | 1460 mm | >1335 mm | |
| 100600 | smoke-shielding | <6000 mm | per running meter | |
| 101040 | fire-retardant+smoke-shielding | <400 mm | no function | |
| 101034 | fire-retardant+smoke-shielding | 335 mm | >220 mm | |
| 101046 | fire-retardant+smoke-shielding | 460 mm | >335 mm | |
| 101059 | fire-retardant+smoke-shielding | 585 mm | >460 mm | |
| 101071 | fire-retardant+smoke-shielding | 710 mm | >585 mm | |
| 101084 | fire-retardant+smoke-shielding | 835 mm | >710 mm | |
| 101096 | fire-retardant+smoke-shielding | 960 mm | >835 mm | |
| 101109 | fire-retardant+smoke-shielding | 1085 mm | >960 mm | |
| 101121 | fire-retardant+smoke-shielding | 1210 mm | >1085 mm | |
| 101134 | fire-retardant+smoke-shielding | 1335 mm | >1210 mm | |
| 101146 | fire-retardant+smoke-shielding | 1460 mm | >1335 mm | |
| 101600 | fire-retardant+smoke-shielding | <6000 mm | per running meter |
| | Order number | Product |
|---|---|---|
 | 900926 | Planet hole Ø10 mm for Planet ZA (specify backset) Planet drill hole Ø10 mm for Planet ZA, suitable for driving bar rod Ø10 mm |
 | 900914 | Lip extension (+8 mm) Lip extension (+8 mm), Planet HS, FT and ZA |
 | 900606 | Antibacterial silicone lip Antibacterial equipment of the sealing lip, only for round lips, Planet HS, FT, ZA |
 | 900200 | Cut to fixed size Cut to fixed dimensions, all Planet types except KG, MinE |
 | 900913 | Silicone-free TPE version Silicone-free TPE version (only for round lips, certificate on request) |
 | 900440 | Silicon protrusion Silicone projection, hinge side: x mm; lock side: y mm, for all Planet types |
| | Order number | Product |
|---|---|---|
 | 900014 | Stopping plate Type 1 (standard) Stopping plate type 1 (standard), stainless |
 | 900188 | Stopping plate Type 2 Stopping plate Type 2, 38 x 21 mm, incl. screws |
 | 900395 | Stopping plate Type 3 Stopping plate Type 3, 38 x 20.5 mm, incl. screws |
 | 900927 | Planet assembly set ZA, for wooden doors Planet assembly set ZA, for wooden doors |
 | Planet BM-R Ø11 mm floor strike (25/40 mm) | |
 | Planet BM Ø10 mm floor strike narrow | |
 | Planet BM Ø10 mm floor strike | |
 | Planet BT floor separation threshold | |
 | Planet F hollow flat rail |
