Planet hole 5x13 mm, symmetrical (specify backset)
for 13 and 20 mm profiles
Features / versions (depending on options)
Floor surfaces
Possible door types (depending on options)

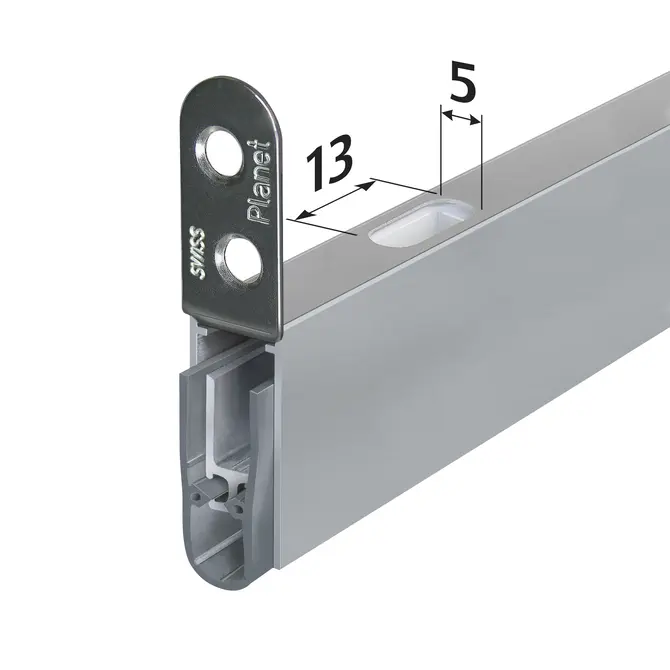

Planet drill hole 5x13 mm, symmetrical, for profile widths 13 and 20 mm
Overview of Advantages
- Drill hole 5 x 13 mm through drop-down seal
- The flat driving bar rods can no longer rotate independently
- drill hole 5 x 13 mm, incl. plastic guide
- For driving bar rods or Planet flush bolts
- For double doors
- Planet drop-down seal continuous
- Narrow, space-saving, integrated solution
- Driving bar rod secured against automatic turning / release
- Fits profile width 13 and 20 mm
- Version for DIN L and DIN R
- For backset 20 to 100 mm
- Prepared for fixed dimensions
- 7-year warranty
Tender specification
Planet drill hole 5 x 13 mm, incl. plastic guide in Planet drop-down seal for narrow driving bar rod or Planet flush bolt supplied by customer. Driving bar rod secured against automatic turning.
| Backset | 20-100 mm, end seal to centre hole |
| Dimension housing | Bohrung 5 x 13 mm |
| Special features | Plastic insert integrated |
