Planet hole Ø10 mm for 20 mm profiles (specify backset)
for 15 and 20 mm profiles
Features / versions (depending on options)
Floor surfaces
Possible door types (depending on options)

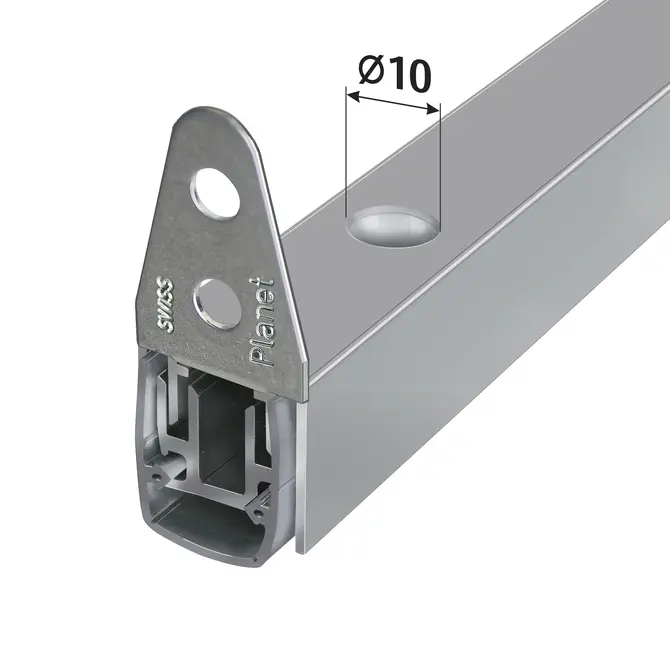

Planet hole Ø10 mm, for profile width 20 mm, suitable for driving bar rod Ø10 mm
Overview of Advantages
- Ø10 mm drill hole through drop-down seal
- For driving bar rods or flush bolts
- For double doors
- Planet drop-down seal continuous
- Fits Planet MF, RO and PU
- Version for DIN L and DIN R
- For backset 20 to 100 mm
- Prepared for fixed dimensions
- 7-year warranty
Tender specification
Planet drill hole Ø10 mm, for round driving bar rod supplied by customer.
| Backset | 20-100 mm, end seal to centre hole |
| Dimension housing | Bohrung Ø10 mm |
