Roller protector FSR 5000 [Basic]
Features
Door types
![Technical drawing Roller protector FSR 5000 [Basic] FS_ROLLO_FSR_5000](images/catalog/mediacockpit/PLANET/CT_IMAGE_webp_205/fsr_5000_massbild_en.webp "Technical drawing Roller protector FSR 5000 [Basic] FS_ROLLO_FSR_5000")
Overview of Advantages
- For securing the non-hinge side on the secondary closing edge of swing doors made of wood, metal, PVC or glass
- Hard-wearing synthetic fibre fabric: washable, difficult to ignite B1
- Concealed housing fixing screws
- Fabric profile screws visible
- Housing position easy adjustable (elongated holes)
- Suitable for almost all doors
- Certified and supervised quality (MPA)
Incl. accessories
Universal screws
Tender specification

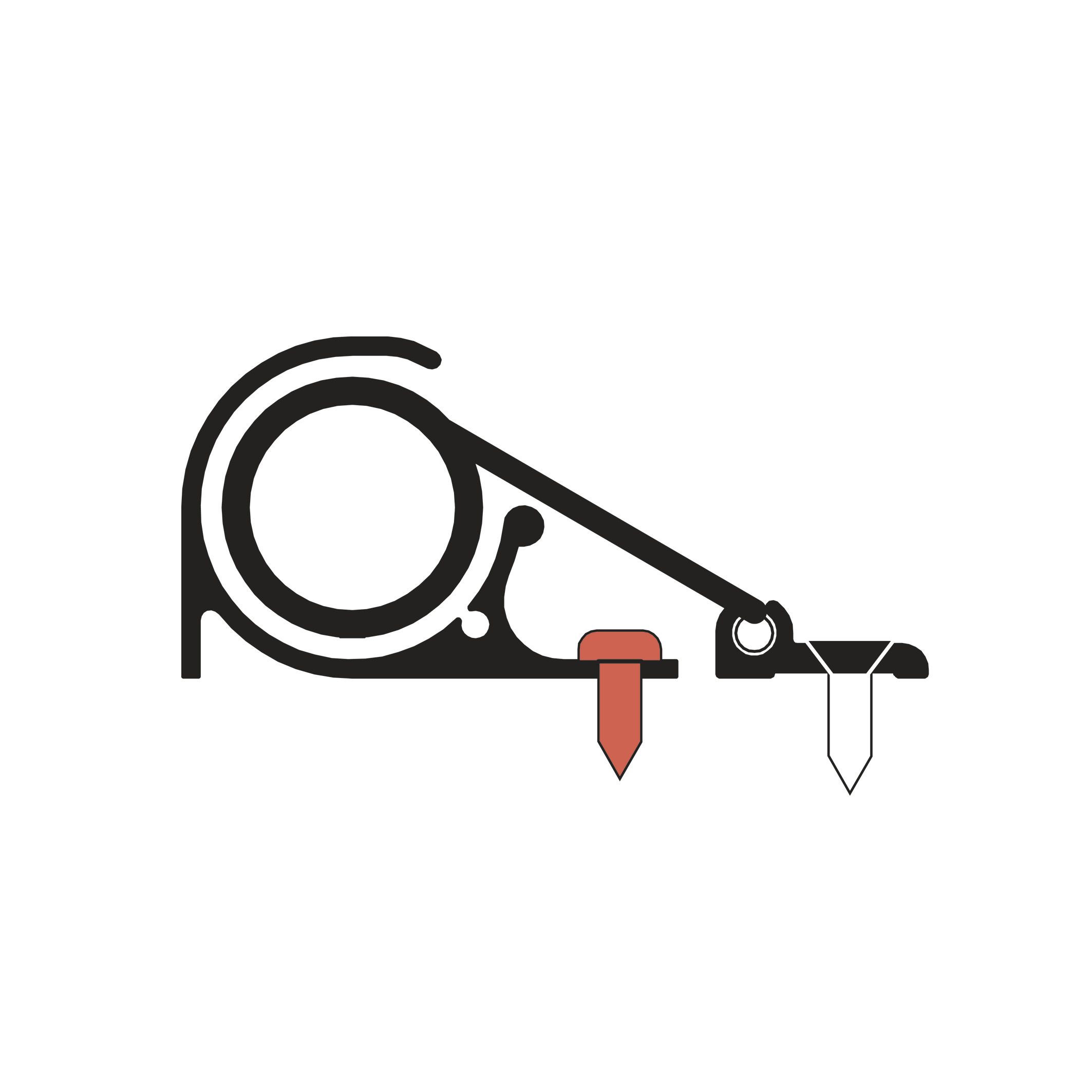

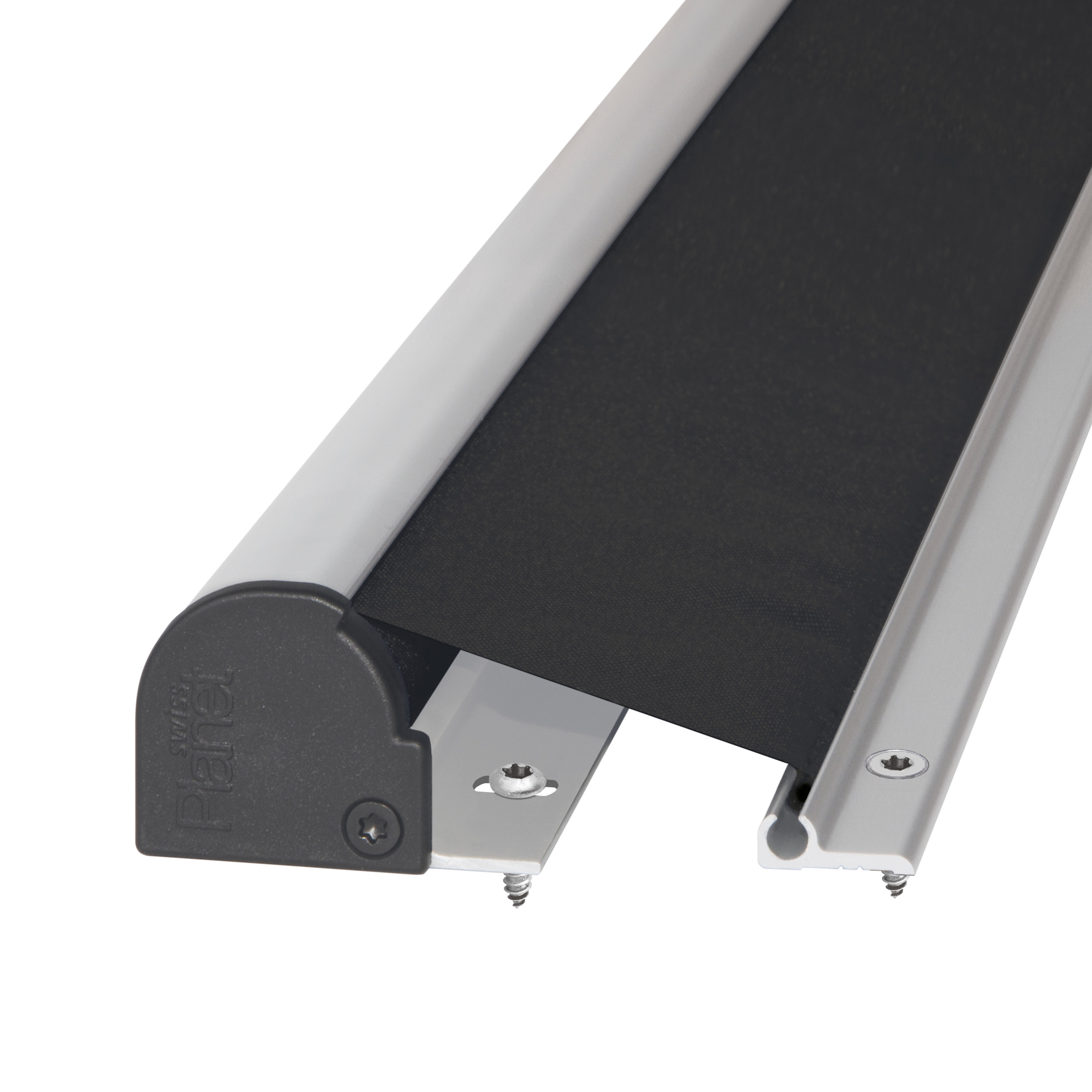

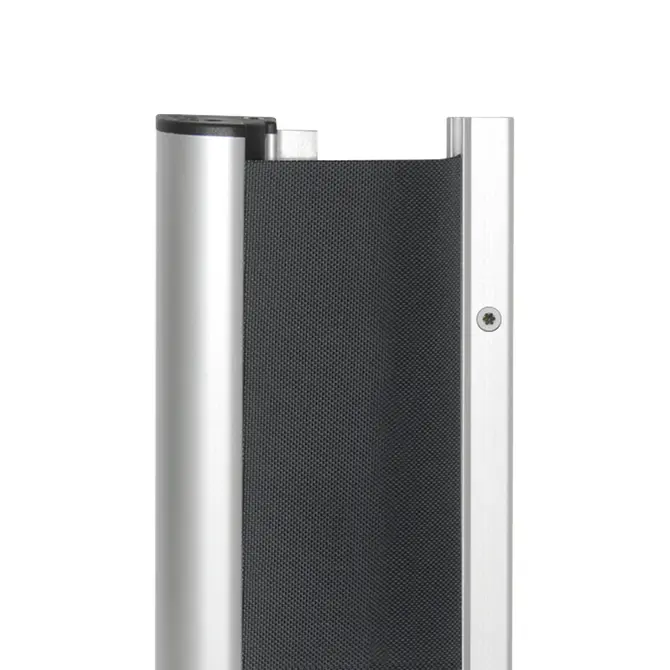

Planet roller-type finger protector FSR 5000 [Basic] for safeguarding the non-hinge side at the secondary closing edge of swing doors. Roller-type protector that automatically maintains a constant tension. Fixing ele- ments on housing side with oblong holes for re-adjusting the roller protector. Profile made of aluminum. Surface finishes: anodised EV1, anodised stainless steel, powder coated RAL 9016, 9007, 7016 (please select). Cover of synthetic fibre, extended length 260 mm, fire retardant B1 treated, colour black. Standard length 1925 mm (for manually operated doors according to DIN 18101 with BRM 2000). Automatic length 2015 mm (for power operated doors according to DIN EN 16005) or fixed length between 310 mm and 2500 mm. (please select supply length)
| Material | Housing: aluminium, cloth: Synthetic fibre |
| Length | min. 310 mm to max. 2500 mm |
| Can be shortened | no |
| Draw out length | 260 mm |
| Order number | Version | Surface | Order placement information |
|---|---|---|---|
| F-5111 | Standard length (1925 mm) | silver anodised EV1 | |
| F-5121 | Standard length (1925 mm) | RAL 9016 | |
| F-5131 | Standard length (1925 mm) | RAL 9007 | |
| F-5141 | Standard length (1925 mm) | RAL 7016 | |
| F-5151 | Standard length (1925 mm) | Matt anodised stainless steel (INOX) | |
| F-5191 | Standard length (1925 mm) | RAL / EURAS (at choice)* | *chargeable option required: Art. no. 901200 or 901201 |
| F-5112 | Automatic length (2015 mm) | silver anodised EV1 | |
| F-5122 | Automatic length (2015 mm) | RAL 9016 | |
| F-5132 | Automatic length (2015 mm) | RAL 9007 | |
| F-5142 | Automatic length (2015 mm) | RAL 7016 | |
| F-5152 | Automatic length (2015 mm) | Matt anodised stainless steel (INOX) | |
| F-5192 | Automatic length (2015 mm) | RAL / EURAS (at choice)* | *chargeable option required: Art. no. 901200 or 901201 |
| F-5113 | made to measure (per linear meter) | silver anodised EV1 | |
| F-5123 | made to measure (per linear meter) | RAL 9016 | |
| F-5133 | made to measure (per linear meter) | RAL 9007 | |
| F-5143 | made to measure (per linear meter) | RAL 7016 | |
| F-5153 | made to measure (per linear meter) | Matt anodised stainless steel (INOX) | |
| F-5193 | made to measure (per linear meter) | RAL / EURAS (at choice)* | *chargeable option required: Art. no. 901200 or 901201 |
| | Order number | Product |
|---|---|---|
 | 901320 | Installation aid, adhesive pads Installation aid, with 6 adhesive pads |
 | 901322 | Hex pin wrench for roller protector Hex pin wrench for roller protector, 2 x 20 x 50 mm |
![Set of screws for roller protector FSR 5000 [Basic]](images/catalog/mediacockpit/PLANET/CT_IMAGE_webp_205/zub_901324.webp "Set of screws for roller protector FSR 5000 [Basic]") | 901324 | Set of screws for roller protector FSR 5000 [Basic] Screws for roller protector FSR 5000 [Basic],10 pcs each/type of screw |
 | 901300 | Planet marking aid Planet marking aid, plastic, black, set incl. pencil |
